Figure 1: 3G DHCP Discover Call Flow (Part 1) Figure 2: 3G DHCP Discover Call Flow (Part 2) Intelligent Wireless Access Gateway Configuration Guide 2 OL-30226-06 Call Flows for 3G and 4G Mobile IP Users 3G DHCP Discover Call Flow LTE to 3G Circuit Switched Fallback (CSFB) Call Flow. A 4G LTE subscriber initiates a voice call in an LTE network that does not support VoLTE. In such cases, the UE falls back to 3G networks to establish a voice call.

One of these is the LTE call flow itself. In fact, call flow and signaling is unique for LTE, and is driven by 3GPP standards. Call flow is how signaling and sessions are established across an LTE network . We will have a look at the call flow diagrams about different procedures in LTE which includes basic registration, Carrier Aggregation ...

Volte call flow diagram

The calling IMS subscriber is currently roaming outside the home network. The called user is registered in the home network. The caller and the called user require resource reservation before the call can be setup. The major steps in the call flow are: IMS routing of the initial SIP INVITE. IMS routing of the first response to the INVITE. Note: To have sound understanding of 5G call flows and signaling, it is better to have a bit of background that you can achieve in my old article/video - 5G Architecture - A summary of 5G Network Deployment Options. A LTE eNB looks for 5G capable mobiles or handsets and as soon as it finds a 5G capable mobile in its coverage, it tries to add the 5G leg for it. LTE Attach Procedure simple explanation with call flow diagram. prodevelopertutorial May 31, 2020. Step 1: UE will read MIB and SIB from network to synchronize with the network. Step 2: UE will send Random Access Preamble (RAP) message to eNB to achieve uplink synchronization. Step 3:

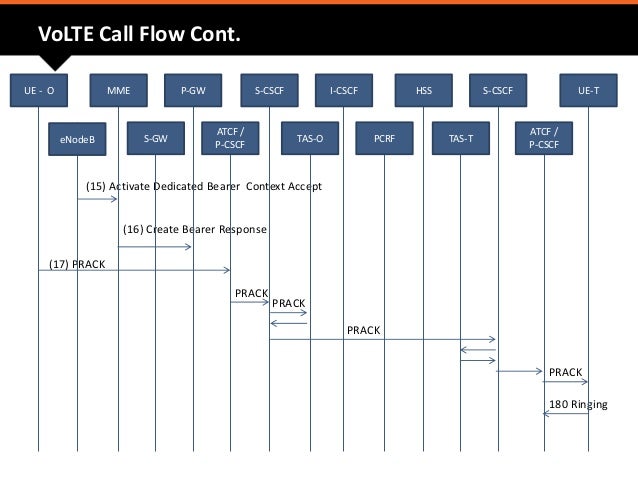

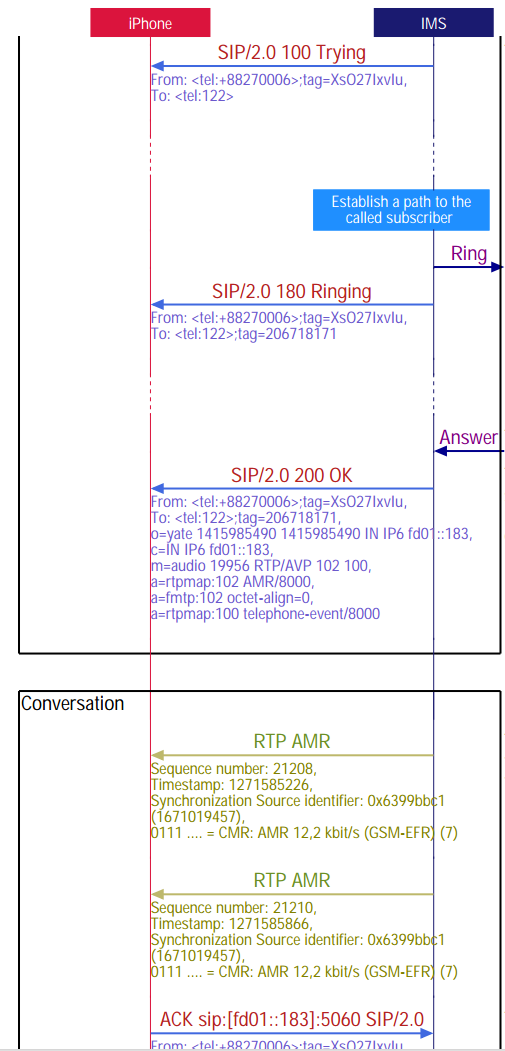

Volte call flow diagram. Section # 2 (Voice Service Flow) · Call in CS Core 2G / 3G Networks · Call via CSFB where VoLTE is not available along with 4G · Call in VoLTE where both 4G & VoLTE exists Section # 3 (SMS Service Flow) · SMS in CS Network: Using 2G / 3G · SMS over SGs: SMS transit via SGs Link between 4G & 2G/3G · SMS in V The following call flow diagram describes the VoLTE to VoWiFi IR HO Call Flows to IR ePDG: Step. Description. 1. The International Roamer (IR) UE attaches to LTE for availing IMS network (IMS APN). 2. Figure 1 - Multi-layer procedural flow required for a VoLTE call. SPIRENT IMS roceres n rotocols | The LTE User Equipment Perspective 4 | www.spirent.com SPIRENT 3.1. PDN Connectivity (NAS Signaling) As in legacy 3GPP technologies, the UE starts connection by issuing a Radio Resource Control (RRC) Connection Voice over LTE (VoLTE) is the standard for voice call setup in LTE networks. When VoLTE is deployed, phones will not need to fallback to 3G for voice calls. VoLTE uses IMS signaling to setup voice calls. The following VoLTE call flow describes the IMS call setup and release. An example of sending an SMS over IMS is also included. Sample RTP and ...

VoLTE IMS SIP registration call flow procedure 5HTTP://TELECOMTUTORIAL.INFO VOLTE UE ATTACH AND IMS REGISTRATION Before we jump onto Call flow , I would like to cover brief concept of QCI Mixed up with Default & dedicated bearer in VoLTE . When the UE is turned on, it establishes a PDN connection with a default APN. VoLTE Basic callflows in IMS network v2 - includes Registration, Basic VoLTE Call, SDP, Interconnect, Roaming, highlights important SIP headers for session routing and user identities. Read more Karel Berkovec ... realtimecommunication.wordpress.com Registration Call-Flow 21. VoLTE MO and MT Call Flow :- Covering VoLTE to VoLTE SIP IMS Call flow for Mobile Originating & Mobile Terminating Calls . It Provides extract of 3GPP / GSMA Specs simplified way. Originating Call Flow Sequence described in Video :-. SIP INVITE message : UE –> IMS. SIP 100 Trying : UE <– IMS. SIP 183 Progress SDP : UE <– IMS. http://telecomtutorial.infoVoLTE MO and MT Call Flow :- Covering VoLTE to VoLTE SIP IMS Call flow for Mobile Originating & Mobile Terminating Calls . It Prov...

VoLTE calling services, troubleshooting teams must be effective when isolating issues to minimize call drop rates. "My Calls Sound Bad" In order for VoLTE service to really take off and ultimately replace existing OTT VoIP options, the quality must be noticeably superior. To ensure this, network operations personnel will need to be Figure:2 VoLTE UE Registration procedure. The figure-2 depicts VoLTE UE registration procedure. Refer which explains IMS SIP client registration call flow. The three elements viz. P-CSCF, I-CSCF and S-CSCF are used during VoLTE UE registration. Also refer VoLTE originating call flow procedure>> which describes call flow state diagram. VoLTE Call Setup Flow - PDN Connection (including PCAP). August 01, 2018 | By Netmanias (tech@netmanias.com). Online viewer:. Figure:1 VoLTE Call Flow State Diagram. The figure-1 depicts IMS SIP client registration call flow. There are three main elements viz. P-CSCF, I-CSCF and S-CSCF. The call flow is self explanatory with the figure-1. Following are the functions of each of these elements. • P-CSCF: It acts as gateway for UE into home network.

VoLTE call flow and procedures is very big area to cover because of the many scenarios to consider from both UE and network perspective. In this article I will try to put some examples of VoLTE call flow from UE point of view. These procedures are the most important for VOLTE calls.

The following diagram shows how the media path is established. Upon request from the user for voice call setup, the UE sends VoLTE call setup request (i.e., SIP INVITE) to the IMS core with an SDP offer, which contains the allocated media information of the originating UE [A].

VoLTE uses IMS SIP signaling to set up voice calls. The following VoLTE call flow describes the IMS call setup and release. An example of sending an SMS over IMS is also included. Sample RTP and ...

Then what would be the difference between VoLTE and generic IP based voice call. The simple answer is that VoLTE over IMS can be specially optimized for voice traffic not only in terms of core network but also in terms of radio stack, whereas generic IP based voice call is just 'best effort' type of application which can hardly be optimized for ...

VoLTE INVITE Call flow. prodevelopertutorial August 31, 2020. In this chapter we shall look at VoLTE IMS Invite Call Flow. Below image shows in brief of INVITE request if both UE are in same IMS Network. Below image shows in brief of INVITE request if both UE are in same IMS Network.

Download scientific diagram | A basic VoLTE call flow between UE A and UE B from publication: Detect and Prevent SIP Flooding Attacks in VoLTE by Utilizing a Two-Tier PFilter Design | As a new ...

The call flow in the LTE network is unique among mobile communication standards and represents the signaling and sessions established across the network.. The LTE call flow navigates over the elements of the network going through certain steps in order to complete its end-to-end signaling from the user equipment (UE) all the way to the rest of the network components.

IMS – IP Multimedia Subsystem is a standalone system. It resides out of the LTE network and connected to PDN Gateway through SGi interface. The EPC has three main functional elements. The first one is Mobility Management Entity (MME). MME is the single most control point in the EPC and responsible for most of the control plane functions.

3.2 VoLTE Basic Call Flows 25 3.2.1 VoLTE UE Attachment and IMS Registration 26 3.2.2 VoLTE UE Initiated Detach and IMS Deregistration 32 3.2.3 Basic VoLTE UE to VoLTE UE Call Establishment – Originating Side 35 3.2.4 Basic VoLTE UE to VoLTE UE Call Establishment – Terminating Side 39

Wireless'9)1)1'Call'Flow! John!Snapp! Vice!President,!Senior!Technical!Officer! John.Snapp@Intrado.com!!

IMS Conference Call Flow Diagrams. This sequence diagram shows an IMS user creating a conference by using a conference-factory URI. The conference is created at a MRFC-AS of the users home network. The steps involved in the conference scenario covered here are:

Full 4G LTE Call Flow course at https://telcomaglobal.com/p/4g-lte-epc-evolved-packet-core-trainingThe LTE Call flow describes the signaling involved in LTE...

In the above basic call flow, three transactions are (marked as 1, 2, 3) available. The complete call (from INVITE to 200 OK) is known as a Dialog. SIP Trapezoid. How does a proxy help to connect one user with another? Let us find out with the help of the following diagram. The topology shown in the diagram is known as a SIP trapezoid.

User Attach flow for VoLTE & Registration call flow. Before we jump onto Call flow , I would like to cover brief concept of QCI Mixed up with Default & dedicated bearer in VoLTE . When the UE is turned on, it establishes a PDN connection with a default APN. Typical operator provides two APNs, i.e., “Internet” APN and the “IMS” APN.

LTE Attach Procedure simple explanation with call flow diagram. prodevelopertutorial May 31, 2020. Step 1: UE will read MIB and SIB from network to synchronize with the network. Step 2: UE will send Random Access Preamble (RAP) message to eNB to achieve uplink synchronization. Step 3:

Note: To have sound understanding of 5G call flows and signaling, it is better to have a bit of background that you can achieve in my old article/video - 5G Architecture - A summary of 5G Network Deployment Options. A LTE eNB looks for 5G capable mobiles or handsets and as soon as it finds a 5G capable mobile in its coverage, it tries to add the 5G leg for it.

The calling IMS subscriber is currently roaming outside the home network. The called user is registered in the home network. The caller and the called user require resource reservation before the call can be setup. The major steps in the call flow are: IMS routing of the initial SIP INVITE. IMS routing of the first response to the INVITE.
