This is where group theory becomes useful. 1. Symmetry of the central oxygen's orbitals. The symmetry of the oxygen orbitals (2s and 2p, the 1s isn't relevant to the bonding) can easily be read off from a character table. In this case, water has C 2v symmetry, the character table for which is given below: H20 Molecular Orbital Diagram. It uses 3-D pictorial presentations of molecular orbitals to elucidate organic reaction . As can be seen from the energy diagram - four of the molecular orbitals. General procedure for simple molecules that contain a central atom: build group orbitals using the outer atoms, then interact the group orbitals.

Molecular Orbitals for Water (H 2 O). The five occupied and the lowest three unoccupied molecular orbitals of the isolated molecule (1a 1) 2 (2a 1) 2 (1b 2) 2 (3a 1) 2 (1b 1) 2 (4a 1) 0 (2b 2) 0 (3b 2) 0 were calculated using the Restricted Hartree-Fock wave function (RHF) using the 6-31G** basis set. b (experimental data is given in []).They are set out with the lowest energy (that is, most ...

Molecular orbital diagram for water

The water HOMO has B 1 symmetry The water HOMO is a pure oxygen 2p x orbital and does not have any contribution from H This lone-pair orbital is orthogonal to the molecular plane and is responsible for the basic/nucleophilic character of the water molecule 5.03 Inorganic Chemistry orbital in the gas phase is 539.9 eV [1227]. These orbitals are appreciably changed in ice and water; the experimental electron binding energies in liquid water being 2a 1 30.90 eV, 1b 2 17.34 eV, 3a 1 13.50 eV, 1b 1 11.16 eV [877]. The experimental binding energy of the 1a 1 orbital in the liquid phase consists of a broad energy distribution ... The kinetics of the reactions of water, hydroxide ion and sulfide species with CO2, OCS and CS2 are investigated using the molecular orbital approach and available kinetic data.

Molecular orbital diagram for water. 6. There is one p orbital on boron but there is no adjacent atom with another p orbital. Add it to the molecular orbital diagram as a non-bonding molecular orbital. 7. There are a total of 6 electrons to add to the molecular orbital diagram, 3 from boron and 1 from each hydrogen atom. sp Hybrid Orbitals in BeH2 1. Molecular Orbital Diagrams simplified. Megan Lim. Oct 26, 2016 · 3 min read. Drawing molecular orbital diagrams is one of the trickier concepts in chemistry. The first major step is understanding ... Molecular Orbital Theory - Walsh diagram The Walsh diagram shows what happens to the molecular orbitals for a set of molecules which are related in structure. In this case, the difference is the H-X-H bond angle which decreases from 180 o to 90 o Molecular Orbital Theory - Walsh diagram Water 104.5 ° X H H H O H English: MO diagram of water. Vectorized, simplified and corrected from File:Diagramme AH2.png. Quantitative calculations show bonding character in both the ...

Extended Pi Bonding In symmetry-based molecular orbital diagrams for the multiatom molecules water, ozone, and methane, we'll combine group orbitals with the valence orbitals of the central atom. The group orbitals are linear combinations of atomic orbitals from all the atoms bonded to the central atom. Molecular Orbital Diagrams, Bond Order, and Number of Unpaired Electrons Draw the molecular orbital diagram for the oxygen molecule, O 2. From this diagram, calculate the bond order for O 2. How does this diagram account for the paramagnetism of O 2? Solution. We draw a molecular orbital energy diagram similar to that shown in Figure 11. MO Diagram for HF The AO energies suggest that the 1s orbital of hydrogen interacts mostly with a 2p orbital of fluorine. The F 2s is nonbonding. H-F nb σ σ* Energy H -13.6 eV 1s F -18.6 eV -40.2 eV 2s 2p So H-F has one σ bond and three lone electron pairs on fluorine Construct SALCs and the molecular orbital diagram for H\(_2\)O. This is the first example so far that is not a linear molecule. Water is a bent molecule, and so it is important to remeber that interactions of pendant ligands are dependent on their position in space.

Molecular Structure of Water: The Water (H 2 O) molecule has a triangular geometry with O-H bond distance of 0.0965nm and the H-O-H bond angle is 104.5°. Although the water as a whole is electrically neutral, it behaves as an electrical dipole. This is because; oxygen atom is more electronegative than the hydrogen atoms, so it attracts ... the lowest energy molecular orbital of water, which consists primarily of the 1S orbital from the oxygen. The displayed orbital can be made to look like orbital #1. in Fig. 2. by changing the material to "Transparent" and the coloring method to "ColorID". For older computers and those without The MO Diagram for Water. Revision. • molecular orbitals are combinations of atomic orbitals. • atomic orbitals: o atomic orbitals have a radial and angular.14 pages In polyatomic molecules we can have more than two atoms combining, e.g. in case of beryllium hydride there are 3 atoms overlapping simultaneously. So in this...

Walsh図 - uninyの雑記帳

Hybridized Molecular Orbital (MO) diagram of H 2 O. To further distinguish the electron energy differences between the two non-bonding orbitals, orbital mixing can be further performed between the 2p (3a 1) orbital on oxygen and the antibonding 4a 1 orbital since they are of the same symmetry and close in energy level. Mixing these two orbitals ...

Container for Water or Beer (Mid–/late 20th century) // Shona Zimbabwe or Mozambique Eastern and Southern Africa

2. The 10-Step approach to making MO diagrams via symmetry considerations 3. Molecular orbital diagram for bent H2O 4. Molecular orbital diagram for linear BeH2 5. Molecular orbital diagram for square planer XeF4 6. Using p-orbitals for σ-bonding: molecular orbital diagram for trigonal planer BF3 1.

Introduction to Molecular Orbital Theory

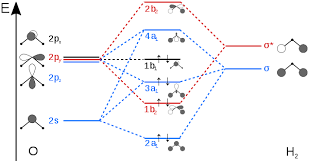

Water With the orbital shapes, symmetries, and energies in hand we can make the MO diagram! A1 A1 B1 B2 -15.8 eV -32.4 eV A1 B1 -13.6 eV 2a1 3a1 4a1 1b1 2b1 1b2 nb nb σ σ Two bonds, two lone pairs on O. HOMO is nonbonding.

body of water

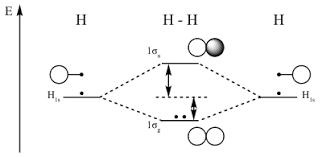

A molecular orbital diagram, or MO diagram, is a qualitative descriptive tool explaining chemical bonding in molecules in terms of molecular orbital theory in general and the linear combination of atomic orbitals (LCAO) method in particular. A fundamental principle of these theories is that as atoms bond to form molecules, a certain number of atomic orbitals combine to form the same number of ...

Hybrid orbitals to ammonia (left) and water (right ...

Molecular Orbital diagram of water (H2O) The molecular orbital diagram is a pictorial representation of determining chemical bonding between the molecules of a compound. Furthermore, the molecular orbital diagram helps with determining how two sigma bonds have been formed and the effect of the lone pairs on the structure.

MO Diagrams for Water and Nitrate Ion - Chemistry LibreTexts

away from the area between the nuclei, placing an electron in this orbital makes the. molecule less stable. The MO Theory has five basic rules: 1. The number of molecular orbitals = the number of atomic orbitals combined. 2. Of the two MO's, one is a bonding orbital (lower energy) and one is an anti-.
