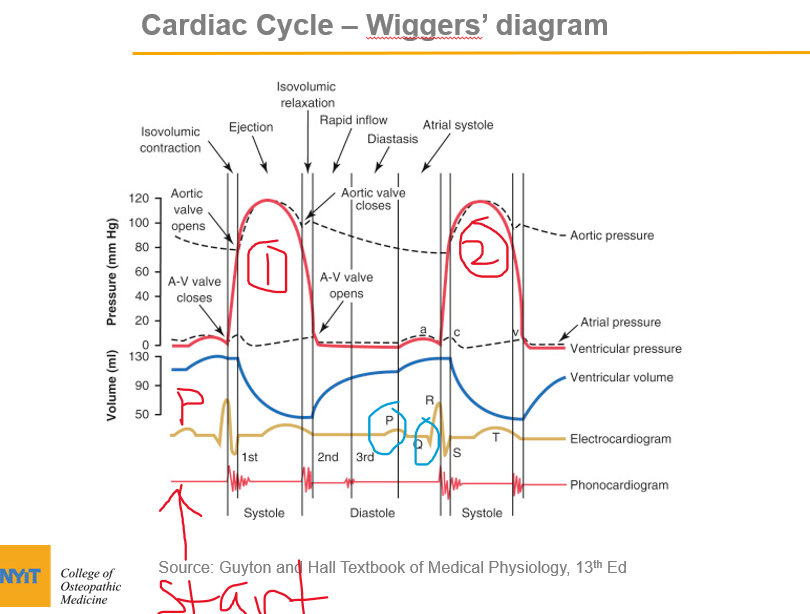

1. Draw the Electrical Cardiac Cycle Events (ECG): Always start with the ECG. In ECG, R-R interval is the duration of cardiac cycle and 1 R-R interval represents 1 cardiac cycle. Peak of R wave: Corresponds to beginning of ventricular systole. Middle of T wave: Corresponds to beginning of ventricular diastole. Wigger’s diagram: This seemingly complex diagram (Don’t Panic!) is actually a very useful tool to learn the components of the cardiac cycle and how they relate to cardiac exam findings, which I have indicated in blue. To start, identify the aortic, LV and LA pressure lines and talk yourself through the sequence of

Wiggers Diagram, Daniel Chang, CC-SA 2.5. A Wiggers diagram shows the changes in ventricular pressure and volume during the cardiac cycle. Often these diagrams also include changes in aortic and atrial pressures, the EKG, and heart sounds. Diastole starts with the closing of the aortic valve (the second heart sound).

Wiggers diagram cardiac cycle

11 Jan 2017 — Wiggers Diagram. 35,749 views35K views ... Wiggers Diagram | Cardiac Cycle | Cardiology | Physiology. Simplified for USMLE COMLEX MCCQE | ... This diagram remains the most commonly used model to teach the cardiac cycle today. A typical Wiggers diagram is shown in Fig. 1. Fig. 1.The Wiggers diagram. From top to bottom, the lines show: 1) aortic pressure, 2) ventricular pressure, 3) atrial pressure, 4) electrocardiogram, 5) mitral and aortic valve opening and closing, and 6) heart sounds. The cardiac cycle - The “Wiggers diagram” Prof. J Swanevelder 4 - 2 The cardiac cycle can be examined in detail by considering the ECG trace, intracardiac pressure and volume curves, and heart valve function. Fig. 1 The “Wiggers Diagram” - Cardiac cycle, showing ventricular volume, ventricular pressure, aortic pressure and atrial pressure

Wiggers diagram cardiac cycle. 28 Apr 2020 — Basically, a "Wiggers Diagram" is a description of the events which take place over the cardiac cycle and which a plotted on a time scale. Videos in The Cardiac Cycle V: The Wiggers Diagram. Concept #1: Wiggers I. Concept #2: Wiggers II. Previous Section The Cardiac Cycle IV: Heart Sounds. Next Section The Cardiac Cycle VI: The Ventricular Pressure-Volume Loop. Expert Q&A. Ask unlimited questions and get expert help right away. by BE Wright · 2020 — Heart sounds, which in the Wiggers diagram have their own line separate from the valve closures line, are shown within the Wright table both for ...‎Skip main navigation · ‎The Wright Table of the... · ‎Using the Wright Table as a...

A Wiggers diagram, named after its developer, Carl Wiggers, is a standard diagram that is used in teaching cardiac physiology. In the Wiggers diagram, the X-axis is used to plot time, while the Y-axis contains all of the following on a single grid: [citation needed] Blood pressure. Aortic pressure; Ventricular pressure; Atrial pressure; Ventricular volume A collection of Wiggers diagrams are available in this post to help you learn about the cardiac cycle. A Wiggers diagram is a standard diagram used in cardiac physiology named after Dr. Carl J. Wiggers who did important work in circulatory physiology in the early part of the 20th century. This diagram is a graphical representation of the cardiac cycle. 5 May 2014 — An in-depth look at Wiggers Diagram. Examining the cardiac cycle, Electrocardiogram, Aortic Pressure, Ventricular Pressure, Atrial Pressure, ... Cardiac Cycle Diagram. The diagram below represents the different phases of the cardiac cycle. The atrial systole, ventricular diastole, ventricular systole and ventricular diastole are clearly mentioned in the cardiac cycle diagram given below.

by JR Mitchell · 2014 · Cited by 53 — All Wiggers' diagrams that portray PAO throughout a cardiac cycle provide an opportunity to introduce the concept of energy waves and their possible ... Wiggers Diagram. The American-born physiologist Dr. Carl J Wiggers has provided many health care students over the past 100 years with a unique tool to understand the cardiac cycle. The Wiggers diagram highlights the relationship between pressure and volume over time, along with the electrical activity of the heart. The diagram uses the left ... A Wiggers diagram of ventricular systole graphically depicts the sequence of contractions by the myocardium of the two ventricles.Ventricular systole induces self-contraction such that pressure in both left and right ventricles rises to a level above that in the two atrial chambers, thereby closing the tricuspid and mitral valves—which are prevented from inverting by the chordae tendineae ... 17 Dec 2018 — A description of the cardiac cycle using the Wiggers Diagram.
