37 draw the shear diagram for the beam. assume that m0=200lb⋅ft, and l=20ft.

PDF Hibbeler Chapter 6 Part 1 (463-486) - Auburn University Draw the shear and moment diagrams for the beam and determine the shear and moment in the beam as functions of x, where 4 ft < x < 10 ft. 200 lb ft B x 4 ft 4 ft 150 lb/ft 6 ft 200 lb ft A Ans. a M =-75x2 + 1050x - 3200 Ans.-200 - 150(x - 4) (x - 4) 2 +©M = 0; - M + 450(x - 4) = 0 V = 1050 - 150x + c©F y = 0;-150(x - 4) - V + 450 = 0 M (lb ft ... Solved Draw the shear diagram for the beam. Assume that ... Draw the shear diagram for the beam. Assume that M 0=200lb⋅ft, and L =20ft. Show transcribed image text. Expert Answer. Who are the experts? Experts are tested by Chegg as specialists in their subject area. We review their content and use your feedback to keep the quality high. 100% (5 ratings)

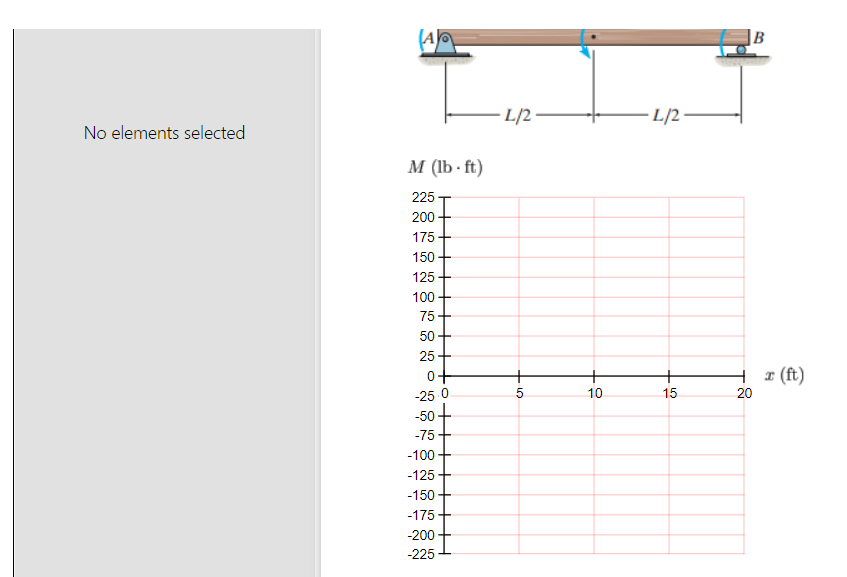

Solved Problem 6.13 Part A Draw the shear diagram for the ... Transcribed image text: Problem 6.13 Part A Draw the shear diagram for the beam. Assume that Mo 200 lb.ft, and L 20 ft. Begin by placing the lines of discontinuity. Place the appropriate function between the lines of discontinuity, ensuring the endpoints have the correct values Note Make sure you place only one vertical line at places that require a vertical line.

Draw the shear diagram for the beam. assume that m0=200lb⋅ft, and l=20ft.

40 draw the shear diagram for the beam. - Wiring Diagrams ... draw the shear diagram for the beam. assume that m0=200lb⋅ft and l=20ft › draw the shear diagram for the beam. follow the sign convention Written By Antonio J. Oliver Sunday, December 19, 2021 Add Comment Edit PDF Chapter 4 Shear and Moment In Beams - ncyu.edu.tw 4.3 Shear- Moment Equations and Shear-Moment Diagrams The determination of the internal force system acting at a given section of a beam : draw a free-body diagram that expose these forces and then compute the forces using equilibrium equations. The goal of the beam analysis －determine the shear force V and 329 6–1. Draw the shear and moment diagrams for the shaft ... Draw the shear and moment diagrams for the cantilevered beam. 300 lb. 200 lb/ft. A. 6 ft. The free-body diagram of the beam's left segment sectioned through ...143 pages

Draw the shear diagram for the beam. assume that m0=200lb⋅ft, and l=20ft.. Shear Forces and Bending Moments Draw the shear-force and bending-moment diagrams for this beam. Solution 4.5-13 Cantilever beam. A. B. 5 ft. 5 ft. 200 lb.26 pages (PDF) Problem Solution To Mechanical Engineering ... Academia.edu is a platform for academics to share research papers. Solved Draw the shear diagram for the beam. Assume that ... Draw the shear diagram for the beam. Assume that M0=200lb⋅ft, and L=20ft. Begin by placing the lines of discontinuity. Place the appropriate function between the lines of discontinuity, ensuring the endpoints have the correct values. Note - Make sure you place only one vertical line at places that require a vertical line. PDF HW 19 SOLUTIONS - University of Utah 6—25. Draw the shear and moment diagrams for the beam- The two segments are joined together at B. 8 kip 3 kip,ft 5 ft *6—20. Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam 10 kip 2 kip/ft g Kip 8 kip 40 kip.ft as functions of x. Support Reactions: As shown on FBD. Shear and Moment ...

Chapter 7 - Anvari.Net Draw the shear and moment diagrams for the beam (a) in terms of the parameters shown; (b) set. L = 12 ft. a = 5 ft,. P = 800 lb,. SOLUTION.137 pages EOF PDF 5-19. P 4 ft A The free-body diagram of the beam's right segment sectioned through an arbitrary point shown in Fig. a will be used to write the shear and moment equations of the beam. *6-4. Draw the shear and moment diagrams for the canti-lever beam. 2 kN/m 6 kN m 2 m A ‚ (1) a+©M = 0; -M - 2(2 - x)c ‚(2) 1 2 (2 - x)d - 6 = 0 M = {-x2 + 4x ... Solved Draw the shear diagram for the beam. Click on "add ... Transcribed image text: Draw the shear diagram for the beam. Click on "add discontinuity" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. add vertical line off dolete add segment U reset ? help 12 kN 6 kN V, kN 16 14 12 10 x,m .6 -8 12 14 Draw the moment diagram for the beam.

45 draw the shear diagram for the beam. assume that m0 ... Draw the shear diagram for the beam. Assume that M0=200lb⋅ft, and L=20ft. Begin by placing the lines of discontinuity. Place the appropriate function between the lines of discontinuity, ensuring the endpoints have the correct values. Note - Make sure you place only one vertical line at places that require a vertical line. 329 6–1. Draw the shear and moment diagrams for the shaft ... Draw the shear and moment diagrams for the cantilevered beam. 300 lb. 200 lb/ft. A. 6 ft. The free-body diagram of the beam's left segment sectioned through ...143 pages PDF Chapter 4 Shear and Moment In Beams - ncyu.edu.tw 4.3 Shear- Moment Equations and Shear-Moment Diagrams The determination of the internal force system acting at a given section of a beam : draw a free-body diagram that expose these forces and then compute the forces using equilibrium equations. The goal of the beam analysis －determine the shear force V and 40 draw the shear diagram for the beam. - Wiring Diagrams ... draw the shear diagram for the beam. assume that m0=200lb⋅ft and l=20ft › draw the shear diagram for the beam. follow the sign convention Written By Antonio J. Oliver Sunday, December 19, 2021 Add Comment Edit
