Jul 30, 2021 · Customizing your grab bar placement is easy with a little planning. By adding proper blocking behind your walls, using grab bars with SecureMount anchors, and following codes and guidelines, your bath and shower grab bar placement will meet your needs exactly! For additional assistance, request a free consultation with an Improveit bath design ... How to Install a Diagonal Shower Safety Rail. Safety rails, also known as grab bars, are installed in showers horizontally, vertically or diagonally. Diagonally positioned rails work better with ...

For a detailed diagram illustrating the parts of a shower, go here. Table of Contents. ... shelves, a grab bar, a shower base (also known as a shower pan or shower tray), and more. It will usually be a quadrant shower enclosure. ... the door placement at the center of the shower makes entry and exit a breeze. 4. Corner Enclosure Shower.

Shower grab bar placement diagram

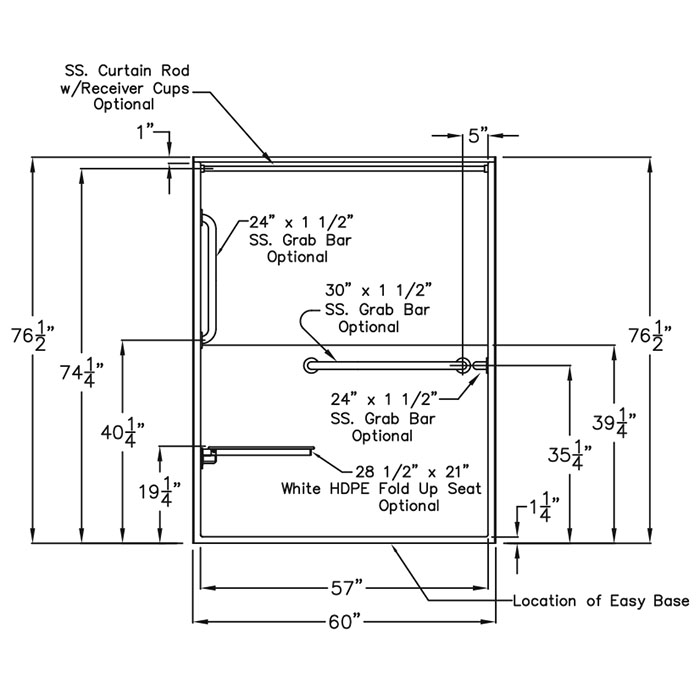

Grab Bars at Shower Stalls. Figure 37(a) 36 in by 36 inches (915 mm by 915 mm) Transfer Stall. The L-shaped shower seat shall be 18 inches (455 mm) above the floor measured at the entry. An L-shaped grab bar (or two single grab bars with the ends close together) shall be provided, located along the full depth of the control wall (opposite the ... The bottom of the horizontal bar should be 36 to 38 inches from the bottom of the shower, according to the Family Handyman. Diagonal A diagonal grab bar is angled and helps an elderly or disabled person raise and lower himself from a bath chair. This sloping bar reduces stress on the person's wrist, according to the Mr. Grab Bar site. The grab bar (or bars) shall be 33-36 inches (840-915 mm) high. The controls shall be placed in an area between 38-48 inches (965 -1220 mm) above the floor. Controls shall be located on the back (long) wall 27 inches (685 mm) from the side wall. The shower head and control area may be located on the back wall or on either side wall.

Shower grab bar placement diagram. Two grab bars shall be installed on the back wall, one located in accordance with 609.4 and the other located 8 inches (205 mm) minimum and 10 inches (255 mm) maximum above the rim of the bathtub. Each grab bar shall be installed 15 inches (380 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall. Each complete bathroom should be pro-vided with the following: cr 1, Grab-bar and soap dish at bathtub lu 0 2, Toilet paper holder at water closet Line ot Wall 3, Soap dish at lavatory (may be integral Or Obstruction! with lavatory) Oi&L 4, Towel bar 5, Mirror and medicine cabinet or equiv-alent enclosed shelf space ssescssas Activity a Zone [6 ... Feb 05, 2022 · Jack O Lantern Halloween. There is never a charge for this service. ) Dec 15, 2021 · Edraw Max provides a variety of wheel diagram templates for users as well as timeline templates as it is a professional diagram program with the ability to create all kinds of diagrams. You can switch around the order, take out a section, or add whatever feels ... Two grab bars shall be installed on the back wall, one located in accordance with 609.4 and the other located 8 inches (205 mm) minimum and 10 inches (255 mm) maximum above the rim of the bathtub. Each grab bar shall be installed 15 inches (380 mm) maximum from the head end wall and 12 inches (305 mm) maximum from the control end wall.

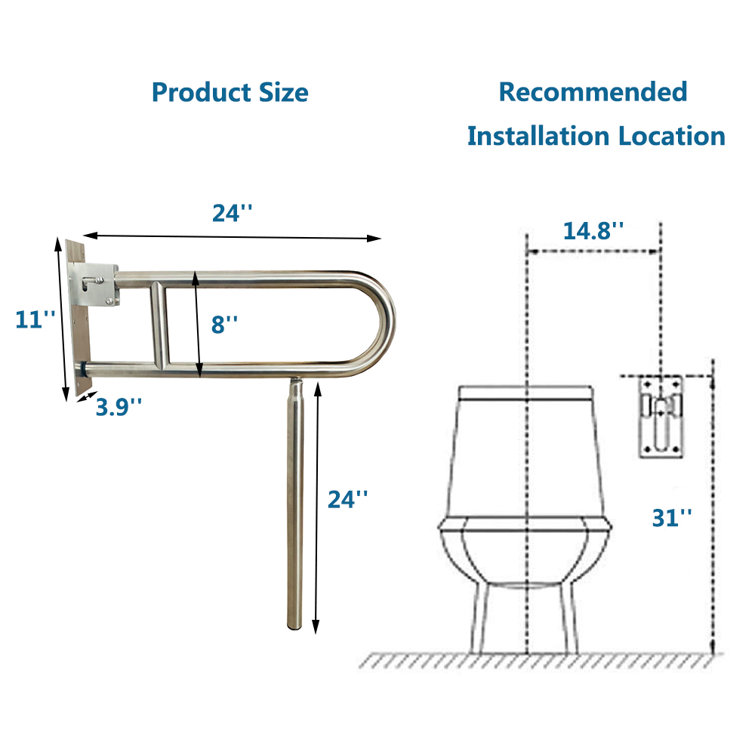

The metal bar cart design with high-quality MDF and metal frame, and also rustic brown give it a vintage industrial style make it fit well with your home taste. Our kitchen bar cart is a good perfect gift for house warming party, and a multi-functional feature would be a … Movable Grab Bar - Vive Suction Shower Grab Bar. This grab bar is designed with suction cups, allowing one to position or reposition on the surface of the shower wall as needed - no installation required. Integrated color indicators turn green when the device is secured to the wall, and red when unsecured. The handle is textured and ... Use the diagram at right as a guide for the installation. If you want to add a second grab bar for support on the shower front wall, it should be at least 12 inches long and installed vertically. Created Date: Grab Bars need to be mounted lower for better leverage (33-36" (840-915 mm) high). Horizontal side wall grab bars need to be 42" (1065 mm) minimum length. Vertical grab bars are not yet covered in the ADA guidelines, however, ANSI specifies the dimensions shown in the diagram. A A B B

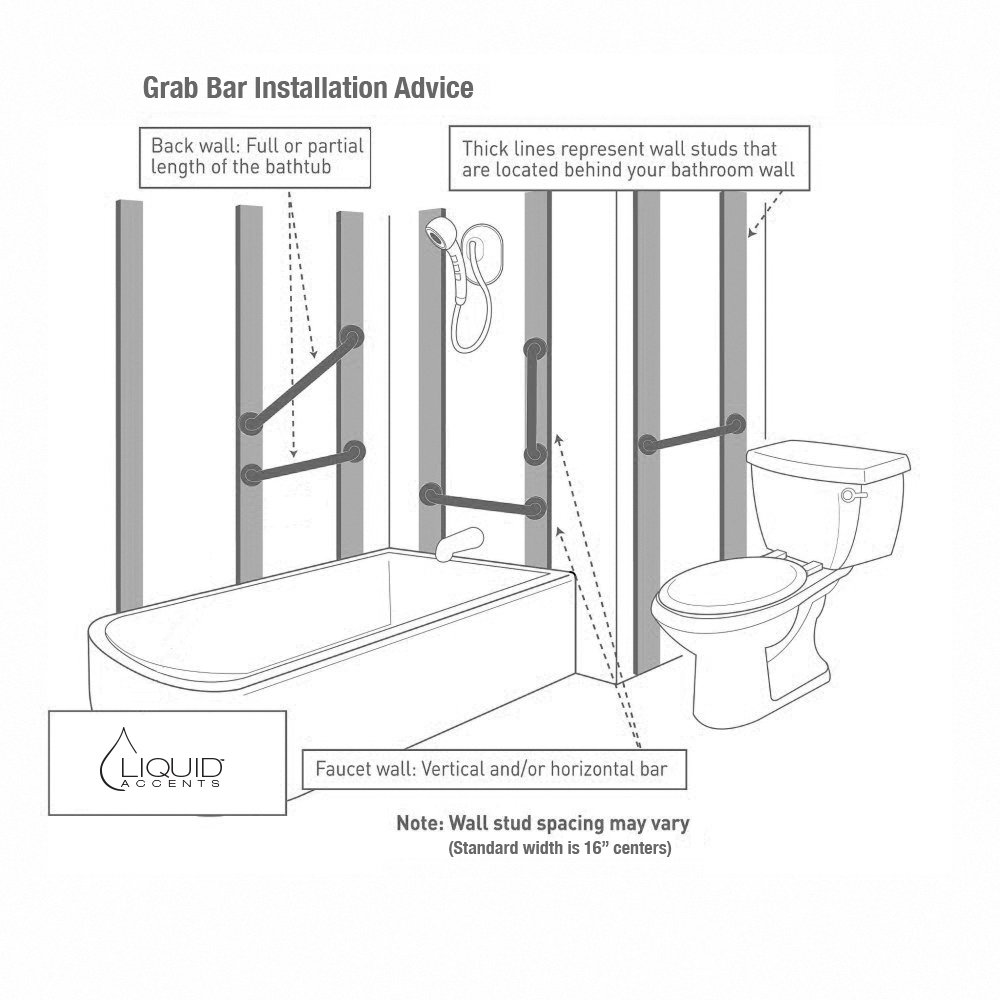

Grab bars can be installed vertically, horizontally, or at an angle in wall studs. In the bathtub or shower stall, you can install the grab bars in the following locations. Vertically on the wall at the entrance to the tub or shower stall. Horizontally on the sidewall of the tub or stall. This bar should be long enough. It makes sense to install more than one grab bar in a shower stall if there is space. A short one (as short as 9 inches) at the entrance and a longer one on the back wall of the stall is the usual configuration. Most guidelines recommend that the bottom of longer grab bars is fitted 36 inches from the floor. Grab bars can be installed on the back wall and control wall of the shower stall. The ADA recommends that two bars be installed on the back wall, one 8 to 10 inches from the rim of the tub and the other parallel to it 33 to 36 inches from the base of the tub. Three grab bars were installed in this tub/shower combo. alternative to a grab rail, as you can push up on the arms. When using a bath/box step to help you step in and out of your shower more easily, we recommend that you also use a grab rail/bar to steady yourself as you get on and off the step. It may also be a good idea to have a bar you can simply hold on to whilst showering for extra support.
